Anode Voltage Apparatus 3009

Anode Voltage Apparatus 3009; Philips France; (ID = 1353719) Power-S
Anode Voltage Apparatus 3009; Philips France; (ID = 2433503) Power-S Anode Voltage Apparatus 3009; Philips France; (ID = 2433500) Power-S
Anode Voltage Apparatus 3009; Philips France; (ID = 2433502) Power-S Anode Voltage Apparatus 3009; Philips France; (ID = 2433501) Power-S

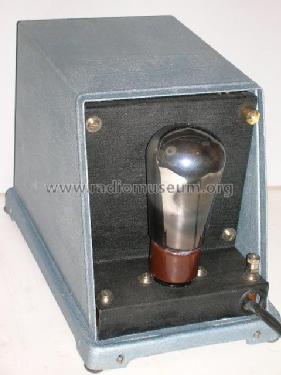

Anode Voltage Apparatus 3009; Philips France; (ID = 610206) Power-S Anode Voltage Apparatus 3009; Philips France; (ID = 610207) Power-S
Anode Voltage Apparatus 3009; Philips France; (ID = 610208) Power-S Anode Voltage Apparatus 3009; Philips France; (ID = 610209) Power-S
Anode Voltage Apparatus 3009; Philips France; (ID = 610210) Power-S Anode Voltage Apparatus 3009; Philips France; (ID = 610211) Power-S
Use red slider bar for more.
Anode Voltage Apparatus 3009; Philips France; (ID = 2433503) Power-S
Philips France;: Anode Voltage Apparatus 3009 [Power-S] ID = 2433503 1279x1494
Select picture or schematic to display from thumbnails on the right and click for download.
For model Anode Voltage Apparatus 3009, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1929 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: 506
Wave bands - without
Details Power: B-Battery Eliminator
Power type and voltage Alternating Current supply (AC) / 225 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Anode Voltage Apparatus 3009 - Philips France; Paris
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 145 x 170 x 230 mm / 5.7 x 6.7 x 9.1 inch
Notes 4 anode voltages (max. 150V). 3 negative voltages for grids (2 ajustables).
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
