Anodenspannungsapparat 372 alt

Anodenspannungsapparat 372; Philips; Eindhoven (ID = 117226) Power-S

Anodenspannungsapparat 372; Philips; Eindhoven (ID = 117228) Power-S

Anodenspannungsapparat 372; Philips; Eindhoven (ID = 117230) Power-S

Anodenspannungsapparat 372; Philips; Eindhoven (ID = 117231) Power-S

Anodenspannungsapparat 372; Philips; Eindhoven (ID = 208589) Power-S

Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1864242) Power-S
Anodenspannungsapparat 372; Philips; Eindhoven (ID = 208590) Power-S Anodenspannungsapparat 372; Philips; Eindhoven (ID = 208591) Power-S
Anodenspannungsapparat 372; Philips; Eindhoven (ID = 208592) Power-S Anodenspannungsapparat 372; Philips; Eindhoven (ID = 2114754) Power-S
Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1097378) Power-S Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1709493) Power-S
Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1709494) Power-S Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1709495) Power-S
Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1709496) Power-S Anodenspannungsapparat 372; Philips; Eindhoven (ID = 1709497) Power-S
Use red slider bar for more.
Anodenspannungsapparat 372; Philips; Eindhoven (ID = 208590) Power-S
Philips; Eindhoven: Anodenspannungsapparat 372 [Power-S] ID = 208590 311x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model Anodenspannungsapparat 372 alt, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1925/1926 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: 373
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Anodenspannungsapparat 372 [alt] - Philips; Eindhoven tubes
Material Metal case, TUBES VISIBLE
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 120 x 150 x 200 mm / 4.7 x 5.9 x 7.9 inch

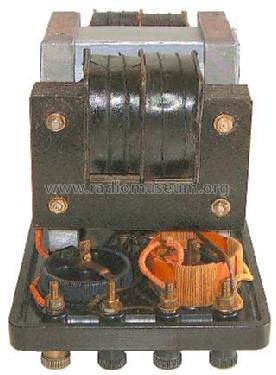

Notes Metal case, black ebonite cover, Volt and Detector knobs, this earlier version has no plinth and a brown finish.
Metallgehäuse mit schwarzer Hartgummiabdeckung. "Volt" und "Detektor" Knöpfe. Die frühere Version hat keinen Sockel und eine braune Farbe.
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Price in first year of sale 55.00 Hfl
External source of data E. Erb 3-907007-36-0
Mentioned in Philips Radio
