• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1950 ?

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 323697

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

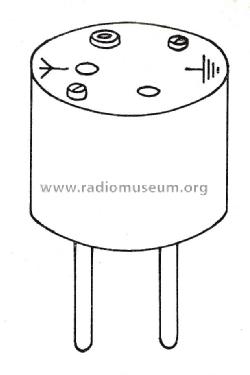

• Model: Antenna filter 7295 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 50 x 30 x 50 mm / 2 x 1.2 x 2 inch

• Notes

• The purpose of this double tunable antenna filter was to reduce the signals from the two Hilversum radio stations on about 300 and 400 m, in order not to overload the receiver during reception of radio stations on other frequencies.

  The filter could be mounted in the antenna - ground connector (the height of 30 mm is excluding the two connector pins.)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
