AS305

AS305; Philips; Eindhoven (ID = 2110353) Radio
Use red slider bar for more.
AS305; Philips; Eindhoven (ID = 2110353) Radio
Philips; Eindhoven: AS305 [Radio] ID = 2110353 1400x808
Select picture or schematic to display from thumbnails on the right and click for download.
For model AS305, Philips; Eindhoven (tubes international!); Miniwatt:

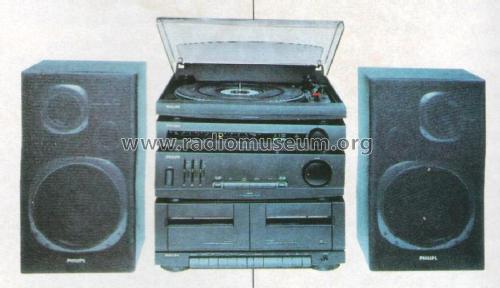

Foto Catalogo Philips

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 40 W (undistorted)
from Radiomuseum.org Model: AS305 - Philips; Eindhoven tubes
Material Various materials
Shape Tablemodel, low profile (big size).
Notes

Midi Sistem,2X20W musical power, 3-band grafic equalizer amplifier with built-in bass boost, source selection and electronic volume control, dual cassette deck for high speed playback and continuous playback, FM stereo, MW, LW, analog tuner with wide tuning display, automatic FM frequency control, Turn disks 2 speed dial with arm lift through automatic armrest, 2-way bass refless speakers with 5" woofer and 1" piezo tweeter.

Mentioned in - - Manufacturers Literature (Euro Magazine Philips 93/94 model page 186)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
