Automatic Ceiling Radio SBC SX390

Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120960) Radio Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120961) Radio
Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120962) Radio Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120963) Radio
Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120964) Radio Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120965) Radio
Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120966) Radio Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120967) Radio
Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 1431798) Radio Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 1431800) Radio
Use red slider bar for more.
Automatic Ceiling Radio SBC SX390; Philips; Eindhoven (ID = 2120960) Radio
Philips; Eindhoven: Automatic Ceiling Radio SBC SX390 [Radio] ID = 2120960 1400x1394
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic Ceiling Radio SBC SX390, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1997 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 4 x 1.5 / ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.8 W (max.)
from Radiomuseum.org Model: Automatic Ceiling Radio SBC SX390 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 197 x 55 x 197 mm / 7.8 x 2.2 x 7.8 inch
Notes

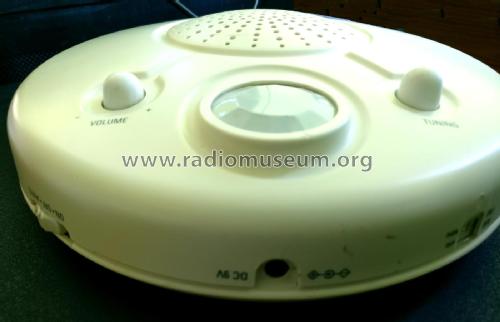

This is a circular shaped radio, waterresistant, with a built-in light sensor. For use in bath room or toilet.

Uses IC TEA 5710. PC board carries brand name CAINEBO, and type number CL-102K

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
