Autoportable P5X44T /04

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299278) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299279) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299280) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299281) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299282) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299283) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299284) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299285) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299286) Radio

Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299287) Radio
Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299277) Radio
Use red slider bar for more.
Autoportable P5X44T /04; Philips; Eindhoven (ID = 2299277) Radio
Philips; Eindhoven: Autoportable P5X44T /04 [Radio] ID = 2299277 1400x1208
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autoportable P5X44T /04, Philips; Eindhoven (tubes international!); Miniwatt:

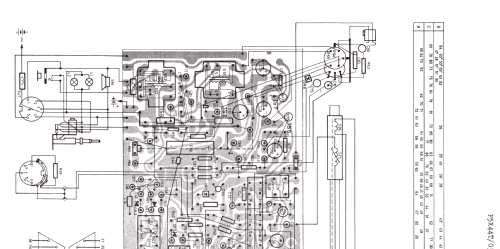

Bild aus Service-Unterlage.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 AC125 AC126 AC128 AC128 AA119 BA100 BA102 OA90 1,4St1
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 5 x 1,5; 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Autoportable P5X44T /04 - Philips; Eindhoven tubes
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 306 x 177 x 87 mm / 12 x 7 x 3.4 inch
Notes

7,5V Batteriebetrieb, 6/12V bei Betrieb im Auto.

Die Ausführung P5X44T /04 ist identisch mit der P5X44T /03, unterscheidet sich nur mit Details des Gehäuses (Ziergitter, Handgriff, Kappe auf Tonbandgerätbuchse und Skala).

Mentioned in -- Original-techn. papers.

Model page created by Gidi Verheijen. See "Data change" for further contributors.
