Cassetta-Stereo 22RN792 /00 /15 /19 /22

Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 2099550) Car Radio

Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 2099551) Car Radio
Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 721984) Car Radio Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 999349) Car Radio
Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 1954028) Car Radio Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 1954030) Car Radio
Use red slider bar for more.
Cassetta-Stereo 22RN792 /00 /15 /19 /22; Philips Radios - (ID = 721984) Car Radio

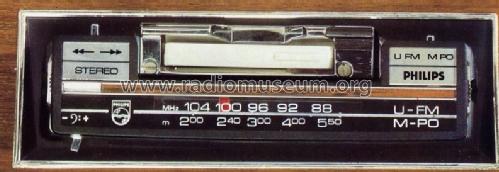

Philips Radios -: Cassetta-Stereo 22RN792 /00 /15 /19 /22 [Car Radio] ID = 721984 933x352
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassetta-Stereo 22RN792 /00 /15 /19 /22, Philips Radios - Deutschland:
Bild aus Servicedoku.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1969–1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 23: BF195 BF194 BC148 BC149 AF121 AC128 AD161 AD162
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Cassetta-Stereo 22RN792 /00 /15 /19 /22 - Philips Radios - Deutschland
Material Metal case
Shape Chassis only or for «building in»
Notes Transistoren teilweise mehrfach vorhanden.
Zwei Gegentakt-Endstufen mit je 5 W. Zwei Metallgehäuse: Empfängerteil (176×50×152 mm) und NF-Teil (176×50×73 mm).
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 590.00 DM
External source of data erb
Source of data Handbuch VDRG 1969/1970
Mentioned in Handbuch VDRG 1970/1971
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Funkschau (12/1969, S. 359 - Stereo im Auto)
