Autoradio Stereo 22AC885

Autoradio Stereo 22AC885; Philips - Österreich (ID = 1080163) Car Radio

Autoradio Stereo 22AC885; Philips - Österreich (ID = 1080164) Car Radio

Autoradio Stereo 22AC885; Philips - Österreich (ID = 1080165) Car Radio

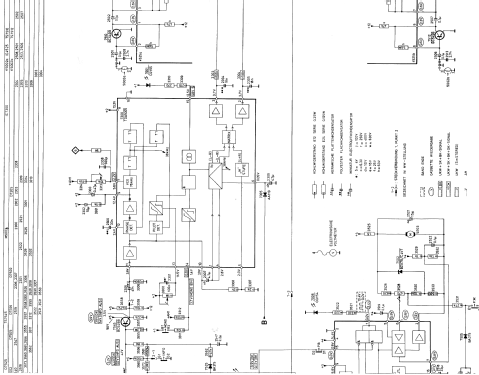

Autoradio Stereo 22AC885; Philips - Österreich (ID = 1080166) Car Radio

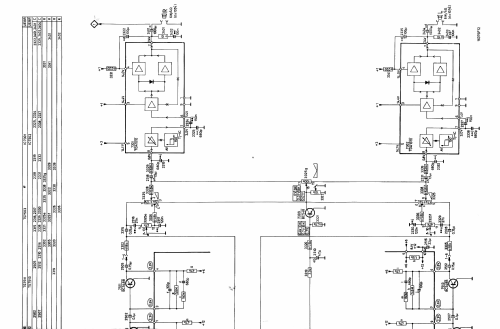

Autoradio Stereo 22AC885; Philips - Österreich (ID = 1080167) Car Radio
Autoradio Stereo 22AC885; Philips - Österreich (ID = 2388560) Car Radio Autoradio Stereo 22AC885; Philips - Österreich (ID = 2388562) Car Radio
Autoradio Stereo 22AC885; Philips - Österreich (ID = 1649694) Car Radio
Use red slider bar for more.
Autoradio Stereo 22AC885; Philips - Österreich (ID = 2388560) Car Radio
Philips - Österreich: Autoradio Stereo 22AC885 [Car Radio] ID = 2388560 1200x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autoradio Stereo 22AC885, Philips - Österreich:
Q: Philips, Katalog 1979

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1981 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 29: TDA1001 TDA1005 TDA1006 TDA1010 TDA1010
Main principle PLL, Phase-locked loop; ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Autoradio Stereo 22AC885 - Philips - Österreich
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 43 x 135 mm / 7.1 x 1.7 x 5.3 inch
Notes E26 diodi, sistema di comutazione canali TURNOLOCK.
Source of data -- Original-techn. papers.

Model page created by Pasquale Baiocato. See "Data change" for further contributors.
