AZ1005

AZ1005; Philips; Eindhoven (ID = 2123622) Radio
Use red slider bar for more.
AZ1005; Philips; Eindhoven (ID = 2123622) Radio

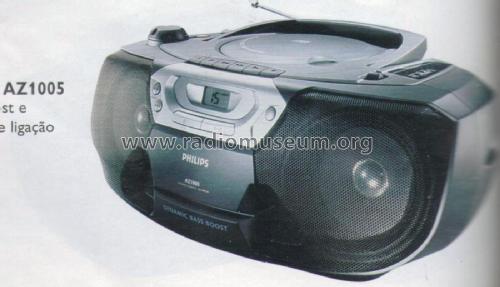

Philips; Eindhoven: AZ1005 [Radio] ID = 2123622 1400x805
Select picture or schematic to display from thumbnails on the right and click for download.
For model AZ1005, Philips; Eindhoven (tubes international!); Miniwatt:
Foto Catalogo Philips

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 2000 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (max.)
from Radiomuseum.org Model: AZ1005 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 400 x 163 x 235 mm / 15.7 x 6.4 x 9.3 inch
Notes

Radio Portable with CD player and cassette, analog tuner  MW, LW, FM, 2x1 W RMS, dynamic bass boost, cd programming random star and synchronized /recording CD, Deck cassette, copy speed, LCD lighted display, headphones.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Mentioned in - - Manufacturers Literature (Catalogo Philips 2000, page 105)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
