AZ105S /12

AZ105S /12; Philips 飞利浦; (ID = 1835136) Radio AZ105S /12; Philips 飞利浦; (ID = 1835132) Radio
AZ105S /12; Philips 飞利浦; (ID = 1835133) Radio AZ105S /12; Philips 飞利浦; (ID = 1835134) Radio
AZ105S /12; Philips 飞利浦; (ID = 1835135) Radio AZ105S /12; Philips 飞利浦; (ID = 1835319) Radio
AZ105S /12; Philips 飞利浦; (ID = 1834896) Radio
Use red slider bar for more.
AZ105S /12; Philips 飞利浦; (ID = 1835136) Radio
Philips 飞利浦;: AZ105S /12 [Radio] ID = 1835136 933x914
Select picture or schematic to display from thumbnails on the right and click for download.
For model AZ105S /12, Philips 飞利浦; China

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 2012 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details CD-Player, -Writer, MD, MOD (audio)

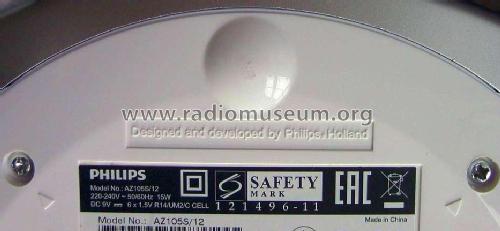

Power type and voltage Line / Batteries (any type) / 220 - 240 / C: 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (undistorted)
from Radiomuseum.org Model: AZ105S /12 - Philips 飞利浦; China
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 261 x 123 x 245 mm / 10.3 x 4.8 x 9.6 inch
Notes

Silvergrey version, other colours available.

Dynamic bass boost
Output power 2 x 1W RMS
THD <1%
Frequency response 63-14000Hz, -3dB
SNR >57dBA
Audio input 650mV RMS

CD-DA, CD-R, CD-RW
20 track memory

FM 87,5-108MHz
THD <3%
SNR >50dBA

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

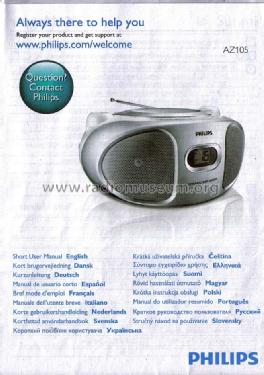

Mentioned in - - Manufacturers Literature (Directions for use AZ105_12_UM_V1.0 2012)

Model page created by Ottmar Lauth. See "Data change" for further contributors.
