AZ1602

AZ1602; Philips; Eindhoven (ID = 2114704) Radio
Use red slider bar for more.
AZ1602; Philips; Eindhoven (ID = 2114704) Radio

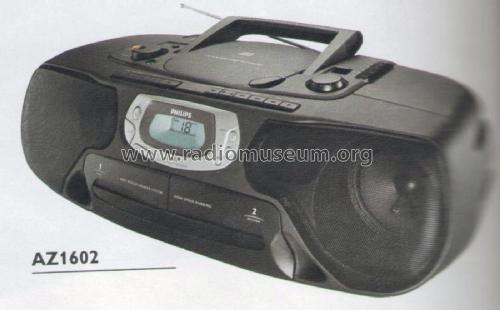

Philips; Eindhoven: AZ1602 [Radio] ID = 2114704 1400x868
Select picture or schematic to display from thumbnails on the right and click for download.
For model AZ1602, Philips; Eindhoven (tubes international!); Miniwatt:
fOTO cATALOGO pHILIPS

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1998 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 5 W (undistorted)
from Radiomuseum.org Model: AZ1602 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 510 x 175 x 250 mm / 20.1 x 6.9 x 9.8 inch
Notes

Radio Portable with CD player and double cassette deck, Analog Tuner FM, OM, OL, 2x2,5 W RMS, dynamic bass boost, bass reflex speakers system, Cd programming, random, deck cassettes copy speed, LCD lighted display, headphones.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Mentioned in - - Manufacturers Literature (Catalogo Philips 98/99 Model Page 90)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
