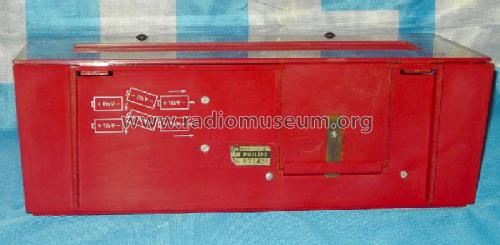

B0X57T; Philips; Eindhoven (ID = 434039) Radio B0X57T; Philips; Eindhoven (ID = 499961) Radio
B0X57T; Philips; Eindhoven (ID = 1783947) Radio
Use red slider bar for more.
B0X57T; Philips; Eindhoven (ID = 434036) Radio
Philips; Eindhoven: B0X57T [Radio] ID = 434036 800x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model B0X57T, Philips; Eindhoven (tubes international!); Miniwatt:
Das Haushalts-Kombigerät brachte Farbe ins Heim!

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: AF127 AF127 AC126 AC128 AC128 OA79
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B0X57T - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 340 x 160 x 120 mm / 13.4 x 6.3 x 4.7 inch
Notes Philips B0X57T, eingebaute Ferrit-Antenne.
Anschlüsse für ext. Antenne und Erde. Neben 5 LC-Kreisen ist im ersten ZF-Bandfilter zur Kopplung ein Keramikschwinger vorhanden.
Price in first year of sale 99.00 NLG
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
