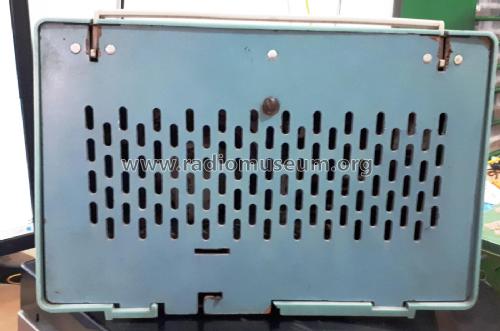

B1LN38T; Philips Portugal (ID = 2352109) Radio B1LN38T; Philips Portugal (ID = 2352111) Radio
B1LN38T; Philips Portugal (ID = 60873) Radio B1LN38T; Philips Portugal (ID = 120603) Radio
B1LN38T; Philips Portugal (ID = 2352112) Radio
Use red slider bar for more.
B1LN38T; Philips Portugal (ID = 2352109) Radio
Philips Portugal: B1LN38T [Radio] ID = 2352109 1400x921
Select picture or schematic to display from thumbnails on the right and click for download.
For model B1LN38T, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF126 AF127 AF127 AC126 AC128 AC128 OA79
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: B1LN38T - Philips Portugal
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 284 x 179 x 116 mm / 11.2 x 7 x 4.6 inch
Notes

Tanto quanto pude enteder de informações obtidas de fontes Portuguesas e Holandesas, alguns modelos de radios Philips montados na FAPAE - Portugal, sob licença Philips, eram similares aos que na Holanda foram referenciados com um X.
As far as I can understand from Portuguese and Dutch sources, some Philips radio models assembled in FAPAE - Portugal , by Philips licence , were similar models to those made in Holland referenced with a X. These Portuguese models were referenced with two letters L and N (LN) meaning Lisbon. The dial-glasses were written in Portuguese language and also the appropriated country broadcasting stations were considered.

Source of data -- Original-techn. papers.

Model page created by Ernst Erb. See "Data change" for further contributors.
