B1X08A /70E

B1X08A /70E; Philips; Eindhoven (ID = 1057922) Radio B1X08A /70E; Philips; Eindhoven (ID = 1057925) Radio
B1X08A /70E; Philips; Eindhoven (ID = 1057927) Radio B1X08A /70E; Philips; Eindhoven (ID = 1057929) Radio
Use red slider bar for more.

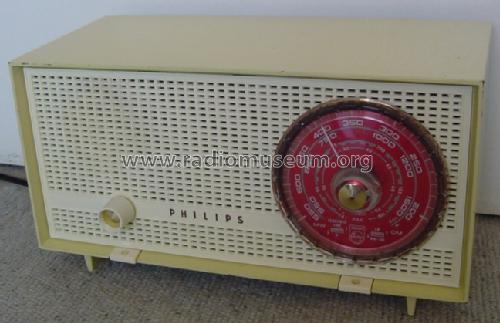

B1X08A /70E; Philips; Eindhoven (ID = 1057922) Radio
Philips; Eindhoven: B1X08A /70E [Radio] ID = 1057922 648x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model B1X08A /70E, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: B1X08A /70E - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 295 x 156 x 140 mm / 11.6 x 6.1 x 5.5 inch

Model page created by Kevin Gregson. See "Data change" for further contributors.
