• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29610

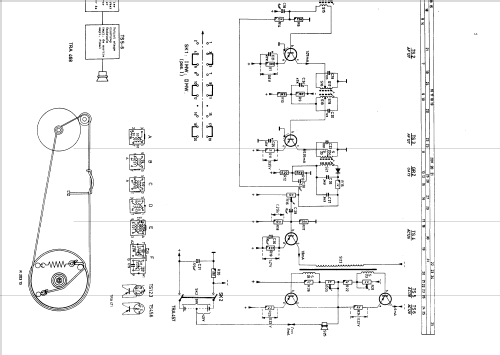

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: B1X38T /62X /95X - Philips; Eindhoven tubes
  • Dimensions (WHD)
  • 284 x 179 x 116 mm / 11.2 x 7 x 4.6 inch
  • Notes
  •

  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
