B1X43A /16D /16X; Philips; Eindhoven (ID = 32638) Radio
Philips; Eindhoven: B1X43A /16D /16X [Radio] ID = 32638 588x408
Select picture or schematic to display from thumbnails on the right and click for download.
For model B1X43A /16D /16X, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) 2: AF124 AF125 OA90 AA119 AA119 BA102 B250C100
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s); Export model
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: B1X43A /16D /16X - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 380 x 172 x 157 mm / 15 x 6.8 x 6.2 inch

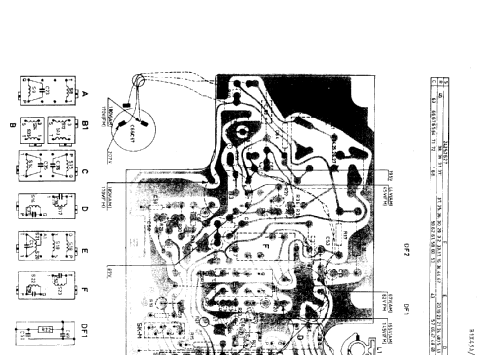

Notes
2 cabinet versions:
  • /00D: Brown cabinet;
  • /00X: Blue cabinet.

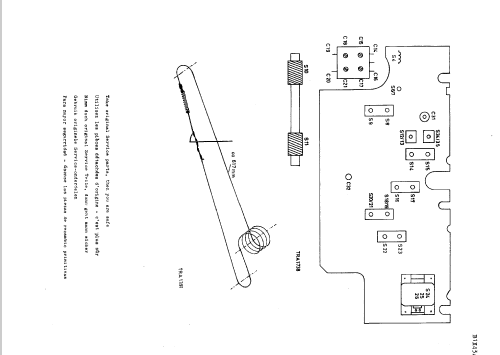

AM radio with built-in ferroceptor:
  • LW: 150 -   260 kHz.
  • BC: 510 - 1620 kHz.
FM radio with dipole antenna input: 87.5 - 108 MHz.
Amplifier: 1 x 1.5 W in 5 Ohm (loudspeaker AD2500/06).

Dial lamp: 8024D/71 (7V/0,3A)

Source of data -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
