B1X45A /00X

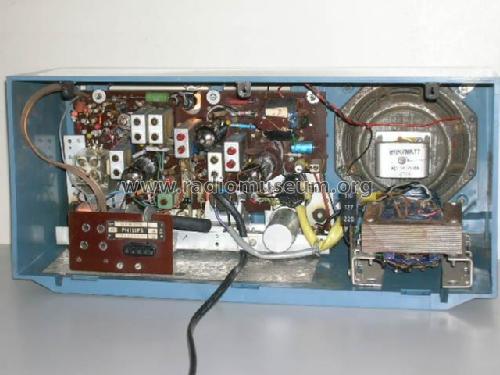

B1X45A /00X; Philips; Eindhoven (ID = 1055131) Radio B1X45A /00X; Philips; Eindhoven (ID = 1055132) Radio

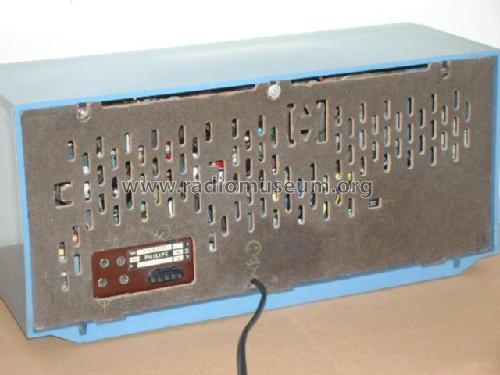

B1X45A /00X; Philips; Eindhoven (ID = 1055133) Radio B1X45A /00X; Philips; Eindhoven (ID = 1055134) Radio
B1X45A /00X; Philips; Eindhoven (ID = 1055135) Radio
Use red slider bar for more.
B1X45A /00X; Philips; Eindhoven (ID = 1055131) Radio
Philips; Eindhoven: B1X45A /00X [Radio] ID = 1055131 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model B1X45A /00X, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) 2: AF124 AF125
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: B1X45A /00X - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 378 x 175 x 157 mm / 14.9 x 6.9 x 6.2 inch
Notes

Dial lamp: 8024D/71 (7V/0,3A). Same chassis as Philips B1X45A /00G.

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
