B1X92A /69R /69E /69F

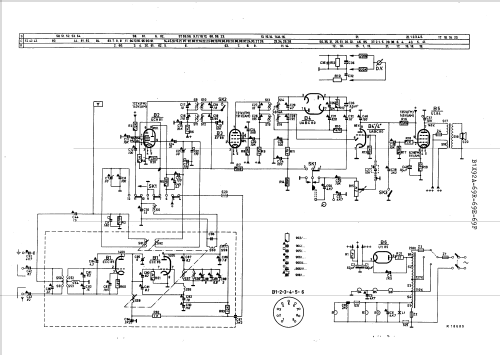

B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 46260) Radio

B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 46261) Radio

B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 46262) Radio

B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 46263) Radio

B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 46264) Radio
B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 158708) Radio B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 158706) Radio
B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 158707) Radio B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 153757) Radio
B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 153758) Radio B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 158709) Radio
B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 380521) Radio B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 380522) Radio
B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 380523) Radio B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 380524) Radio
Use red slider bar for more.
B1X92A /69R /69E /69F; Philips; Eindhoven (ID = 158708) Radio
Philips; Eindhoven: B1X92A /69R /69E /69F [Radio] ID = 158708 752x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model B1X92A /69R /69E /69F, Philips; Eindhoven (tubes international!); Miniwatt:
aus ebay, Verkäufer robert_0385

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 UABC80 EF89 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B1X92A /69R /69E /69F - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 295 x 156 x 140 mm / 11.6 x 6.1 x 5.5 inch
Notes Spartransformator

Model page created by Iven Müller. See "Data change" for further contributors.
