B2G04U
Use red slider bar for more.

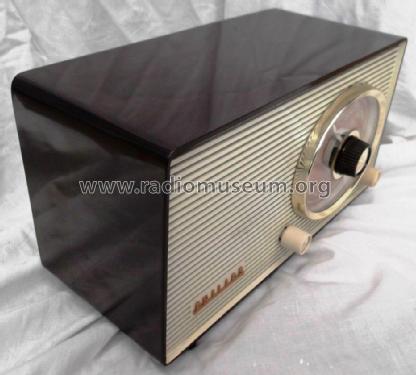

Philips Electrical,: B2G04U [Radio] ID = 1945781 1024x540
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: UCH81 UBF89 UCL82 UY85 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 200-250 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm |
| Power out | |
| from Radiomuseum.org | Model: B2G04U - Philips Electrical, Lamps, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel, with any shape - general. |
| Literature/Schematics (1) | - - Manufacturers Literature |
Model page created by Howard Craven. See "Data change" for further contributors.
