B2G05U (205U)

B2G05U ; Philips Electrical, (ID = 599582) Radio

B2G05U ; Philips Electrical, (ID = 599583) Radio
Use red slider bar for more.
B2G05U ; Philips Electrical, (ID = 599582) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF89 UCL82 UY85
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: B2G05U - Philips Electrical, Lamps,

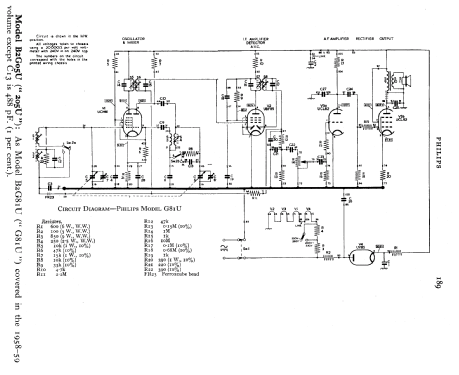

Notes Chassis similar to model B2G81U.
Source of data RCA Receiving Tube Manual RC-15

Model page created by Keith Staines. See "Data change" for further contributors.
