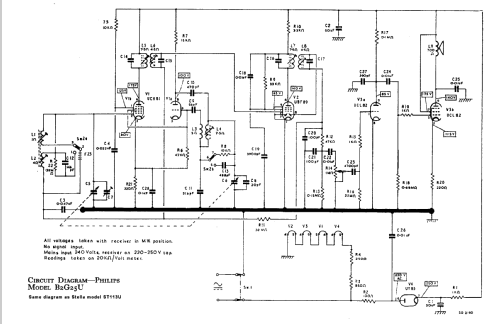

B2G25U; Philips Electrical, (ID = 65559) Radio

B2G25U; Philips Electrical, (ID = 65560) Radio

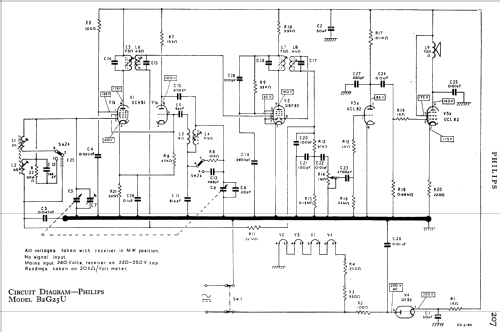

B2G25U; Philips Electrical, (ID = 770042) Radio

B2G25U; Philips Electrical, (ID = 770043) Radio
B2G25U; Philips Electrical, (ID = 146080) Radio B2G25U; Philips Electrical, (ID = 435764) Radio

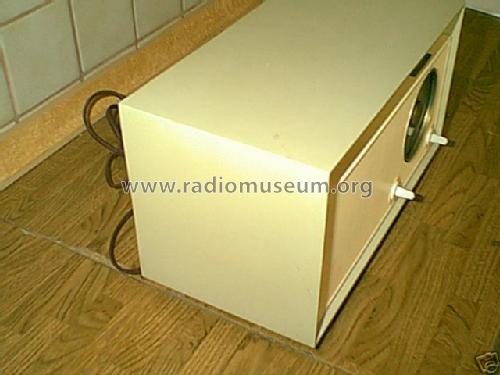

B2G25U; Philips Electrical, (ID = 435765) Radio B2G25U; Philips Electrical, (ID = 435766) Radio
B2G25U; Philips Electrical, (ID = 435767) Radio
Use red slider bar for more.

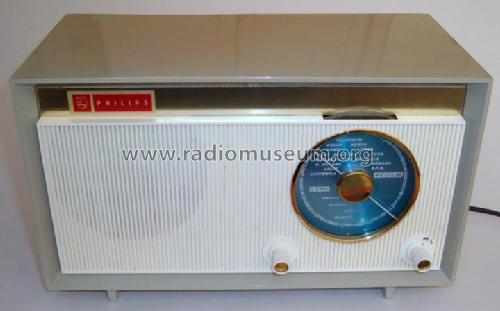

B2G25U; Philips Electrical, (ID = 146080) Radio
Philips Electrical,: B2G25U [Radio] ID = 146080 720x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2G25U, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1960–1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF89 UCL82 UY85
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 210/240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.7 inch = 11.9 cm
Power out
from Radiomuseum.org Model: B2G25U - Philips Electrical, Lamps,
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 305 x 185 x 158 mm / 12 x 7.3 x 6.2 inch
Notes No output transformer; high impedance (800 Ohm) loudspeaker. This model is identical with Stella St113u both electrically and physically. Color combination and logo are the only differences.
Source of data -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
