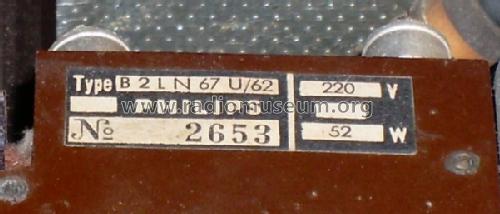

B2LN67U-62

• Country
• Portugal

• Manufacturer / Brand
• Philips Portugal

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128928

• • Brand: FAPAE

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

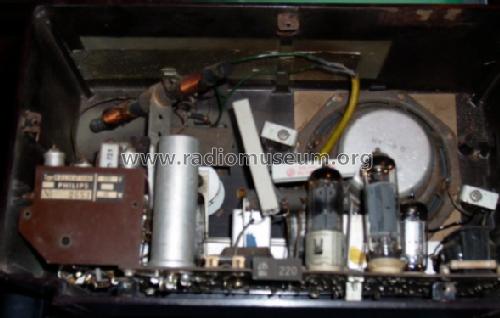

• UCH81 UF89 UBC81 UL84 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: B2LN67U-62 - Philips Portugal

• Shape

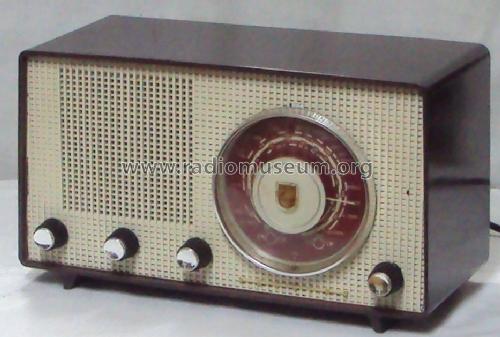

• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 312 x 177 x 139 mm / 12.3 x 7 x 5.5 inch

• Notes

• Colours: cherry and anthracite. This model is identical to B2X67U-65-98 except 45 different components.
  They are described in "Informação de Serviçe", a sheet included in its schematic.

  Dial lamp: 8009D (6,3V/0,25A).

• Source of data
• -- Schematic

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
