B2LN95U; Philips Portugal (ID = 314401) Radio

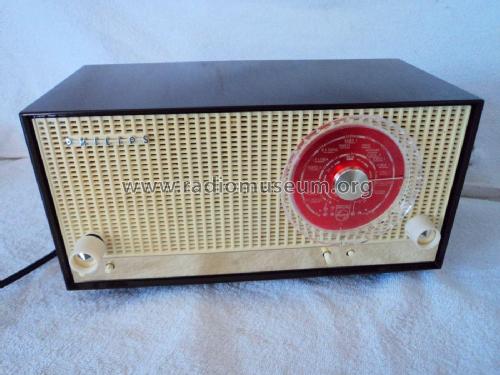

Philips Portugal: B2LN95U [Radio] ID = 314401 536x369
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2LN95U, Philips Portugal:
From a Philips-Portugal Prospect.

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: B2LN95U - Philips Portugal
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 280 x 150 x 140 mm / 11 x 5.9 x 5.5 inch
Notes Dial lamp: 8009D (6,3V/0,25A)
Mentioned in -- Original prospect or advert

Model page created by Mario Coelho. See "Data change" for further contributors.
