B2X48T /95GLR

B2X48T /95GLR; Philips; Eindhoven (ID = 720588) Radio

B2X48T /95GLR; Philips; Eindhoven (ID = 720589) Radio

B2X48T /95GLR; Philips; Eindhoven (ID = 720590) Radio

B2X48T /95GLR; Philips; Eindhoven (ID = 720591) Radio

B2X48T /95GLR; Philips; Eindhoven (ID = 720592) Radio

B2X48T /95GLR; Philips; Eindhoven (ID = 720593) Radio
B2X48T /95GLR; Philips; Eindhoven (ID = 721340) Radio
Use red slider bar for more.
B2X48T /95GLR; Philips; Eindhoven (ID = 721340) Radio

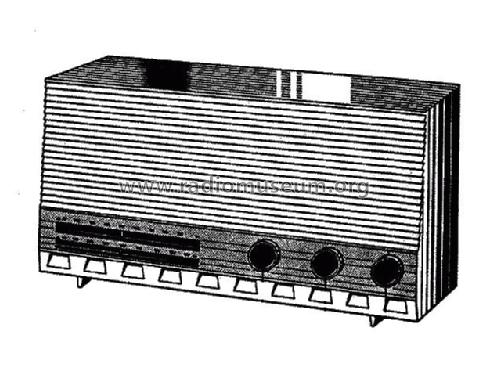

Philips; Eindhoven: B2X48T /95GLR [Radio] ID = 721340 632x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2X48T /95GLR, Philips; Eindhoven (tubes international!); Miniwatt:
From the literature.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF126 AF127 AF127 AC126 AC128 AC128 OA79
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: B2X48T /95GLR - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 362 x 182 x 128 mm / 14.3 x 7.2 x 5 inch
Source of data -- Schematic

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
