B2X71U /00 /02 /03

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 45733) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 45734) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 45735) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1615517) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1615519) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1615520) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1615522) Radio

B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1615523) Radio
B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1472753) Radio B2X71U /00 /02 /03; Philips; Eindhoven (ID = 39397) Radio
B2X71U /00 /02 /03; Philips; Eindhoven (ID = 211315) Radio B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1472754) Radio
Use red slider bar for more.
B2X71U /00 /02 /03; Philips; Eindhoven (ID = 1472753) Radio
Philips; Eindhoven: B2X71U /00 /02 /03 [Radio] ID = 1472753 933x637
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2X71U /00 /02 /03, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B2X71U /00 /02 /03 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 312 x 177 x 139 mm / 12.3 x 7 x 5.5 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 260 kHz.
  • BC: 517 - 1610 kHz.
Loudspeaker AD2500X.
Dial lamp: 8009D-07 (6,3V / 250mA).

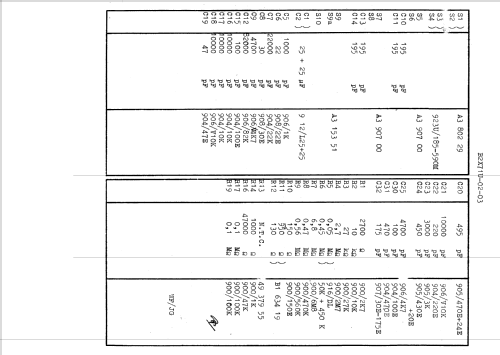

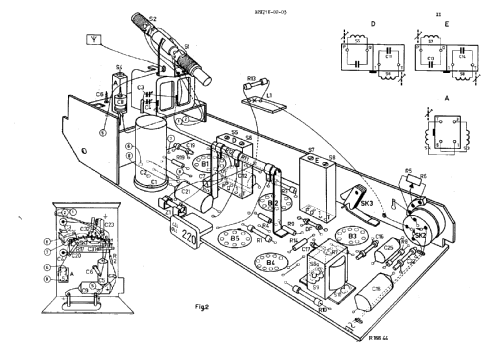

The differences between versions /00, /02 and /03 are all mechanical items: the cabinet, the knobs, the tuning dial. See this model schematics section.

Mentioned in -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
