B2X92A /00K

B2X92A /00K; Philips; Eindhoven (ID = 46265) Radio

B2X92A /00K; Philips; Eindhoven (ID = 46266) Radio

B2X92A /00K; Philips; Eindhoven (ID = 46267) Radio

B2X92A /00K; Philips; Eindhoven (ID = 46268) Radio

B2X92A /00K; Philips; Eindhoven (ID = 46269) Radio
B2X92A /00K; Philips; Eindhoven (ID = 1785320) Radio B2X92A /00K; Philips; Eindhoven (ID = 165753) Radio

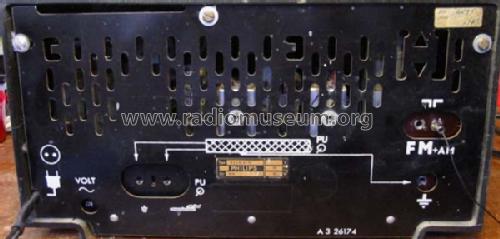

B2X92A /00K; Philips; Eindhoven (ID = 165752) Radio B2X92A /00K; Philips; Eindhoven (ID = 165754) Radio
Use red slider bar for more.
B2X92A /00K; Philips; Eindhoven (ID = 1785320) Radio
Philips; Eindhoven: B2X92A /00K [Radio] ID = 1785320 933x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model B2X92A /00K, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: B2X92A /00K - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 310 x 176 x 167 mm / 12.2 x 6.9 x 6.6 inch
Notes
3 cabinet versions:
  • /00R: Black cabinet.
  • /00K: Creme coloured cabinet.
  • /00L: Red cabinet.
AM radio with built-in ferroceptor:
  • LW: 150 - 260 kHz.
  • BC: 517 - 1622 kHz.
FM radio with dipole antenna input: 87.5 - 100 MHz.

Amplifier: 1 x 5 W in 5 Ohm (Loudspeaker AD1400W).
Dial lamp: 8024N-00 (6.3V / 300mA; bajonet)

Autotransformer.

External source of data Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 5007 models, 4189 with images and 3344 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: B2X92A /00K
Threads: 1 | Posts: 4
Hits: 1873     Replies: 3
philips: B2X92A;
Mario Coelho
30.Jan.06
  1

Dear Radiofriends

I've here one Mediator 2041A. It is look like this Philips B2X92A.

This Mediator has its pushbutton switch unit damaged. Some triggers are lost. Three pushbuttons do not work.

I noticed that one of our members Mr. Sjaak von Schaik has one B2X92A. Unfortunately I couldn't find his email address here in Rmorg.
I would like to contact him to ask him to send me a photo of his Philips's pushbutton switch unit.

Do You know how can I contact him?

Thank You

Best Regards

Mário Coelho

Reiner Scholz
30.Jan.06
  2 Hello Mario, all I can provide to you, is the home address and a phone number. I am not sure, it´s ok to post this right here. Please mail me with scholli.scholz[A*T]t-online.de
Mario Coelho
31.Jan.06
  3 Hallo Reiner


Thank You for Your prompt reply.

I think  You are right. I agree with You. I'll mail You.


Best Regards

Mário Coelho


Mario Coelho
11.Feb.06
  4

Dear Friends,

I would like to tell You that I already got from Mr. Schaik the information I need.

Mr. Schaik was very kind. He sent me a photograph of his set's pushbutton unit.
It was very precious  help. After all there is one missing bar, not three missing triggers in my unit.
I got the solution and very good news. I only had to make (hand made) one linear bar instead of three complicated triggers.

This radio is now repaired. I already asked for Rmorg to create this set  as a New Model.

Thak You Mr. Sjaak van Schaik,
thank You Mr. Reiner Scholz and Mr. Hugo Sneyers

Best Regards
Mário Coelho


Philips; Eindhoven: B2X92A /00K
End of forum contributions about this model
