B3F96T

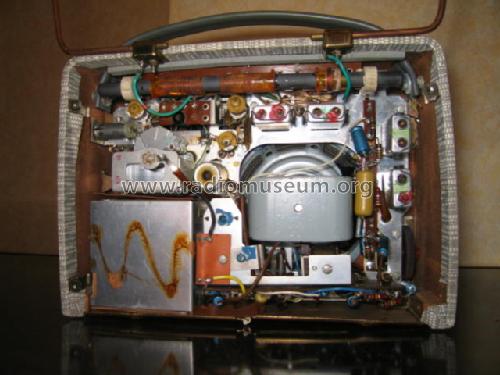

B3F96T; Philips France; (ID = 437235) Radio B3F96T; Philips France; (ID = 437249) Radio
B3F96T; Philips France; (ID = 437239) Radio
Use red slider bar for more.

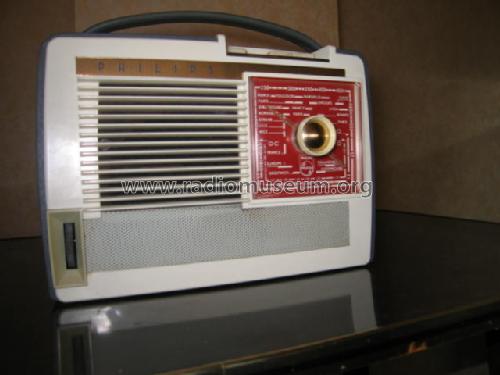

B3F96T; Philips France; (ID = 437235) Radio
Philips France;: B3F96T [Radio] ID = 437235 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3F96T, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: B3F96T - Philips France; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 100 x 185 mm / 10.2 x 3.9 x 7.3 inch
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data - - Data from my own collection

Model page created by Eddy Rischmann. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
