B3G75U; Philips Electrical, (ID = 250249) Radio
Philips Electrical,: B3G75U [Radio] ID = 250249 933x659
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3G75U, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner

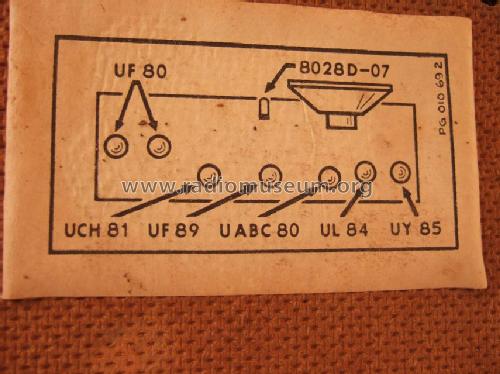

Valves / Tubes 7: UF80 UF80 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 200-220; 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: B3G75U - Philips Electrical, Lamps,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 355 x 235 x 185 mm / 14 x 9.3 x 7.3 inch
Notes

An AC/DC mains AM/FM table radio covering MW (187 - 569 metres), LW (1128 - 2000 metres) and VHF (87.5 - 100 MHz). Sockets for earth and external AM and FM aerials. Released August 1957 price £16 13s 6d plus purchase tax.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1342 dated 8 March 1958)

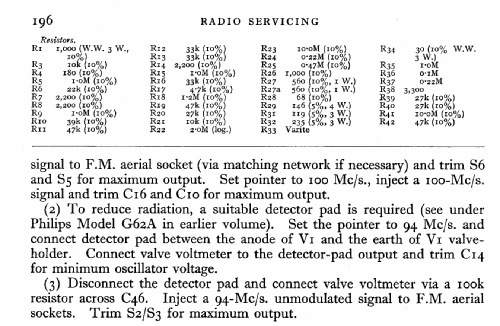

Literature/Schematics (2) Radio And Television Servicing books (R&TVS)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
Here you find 417 models, 281 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
