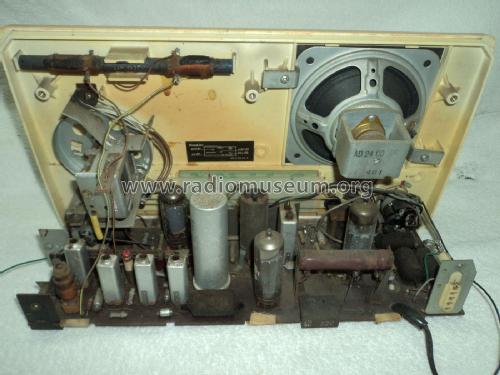

B3LN05U /35; Philips Portugal (ID = 1928239) Radio B3LN05U /35; Philips Portugal (ID = 1928240) Radio
B3LN05U /35; Philips Portugal (ID = 1928242) Radio
Use red slider bar for more.
B3LN05U /35; Philips Portugal (ID = 62920) Radio

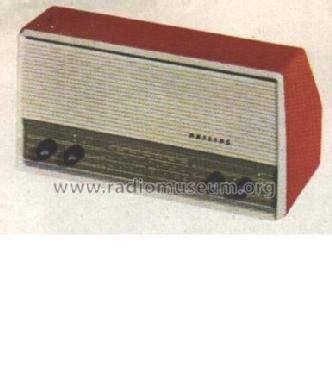

Philips Portugal: B3LN05U /35 [Radio] ID = 62920 386x435
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3LN05U /35, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY89
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: B3LN05U /35 - Philips Portugal
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 195 x 146 mm / 13.8 x 7.7 x 5.7 inch
Notes PU input. There is a similar model B3X05U Netherlands. Is it true that one has Broadcast and Short Waves, the other only Broadcast?

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Philips Portugal
Here you find 72 models, 66 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
