B3LN75U /00

B3LN75U /00; Philips Portugal (ID = 1923950) Radio B3LN75U /00; Philips Portugal (ID = 1923952) Radio
B3LN75U /00; Philips Portugal (ID = 1923954) Radio B3LN75U /00; Philips Portugal (ID = 1923955) Radio
B3LN75U /00; Philips Portugal (ID = 1923956) Radio B3LN75U /00; Philips Portugal (ID = 1923957) Radio

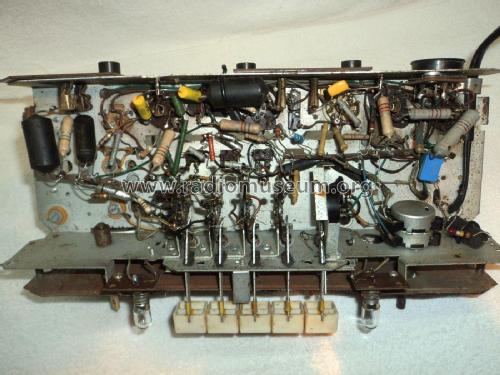

B3LN75U /00; Philips Portugal (ID = 1923958) Radio B3LN75U /00; Philips Portugal (ID = 1923959) Radio
Use red slider bar for more.
B3LN75U /00; Philips Portugal (ID = 1923950) Radio
Philips Portugal: B3LN75U /00 [Radio] ID = 1923950 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3LN75U /00, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B3LN75U /00 - Philips Portugal
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 320 x 190 x 180 mm / 12.6 x 7.5 x 7.1 inch
Notes

OC 1: 13 ... 45 m (22 ... 6.5 MHz)
OC 2: 45 ... 125 m (6.5 ... 2.2 MHz)

Built-in Ferroceptor (Ferrocaptor)

Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)

Model page created by Carlos Alves. See "Data change" for further contributors.
