B3M85U (/00) /02
Philips Mexicana S.A. de C.V.; Mexico D.F.
- Country
- Mexico
- Manufacturer / Brand
- Philips Mexicana S.A. de C.V.; Mexico D.F.
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 193336
mercadolibre.com.mx #638864041
mercadolibre.com.mx #638864041
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 90-127 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: B3M85U /02 - Philips Mexicana S.A. de C.V.;

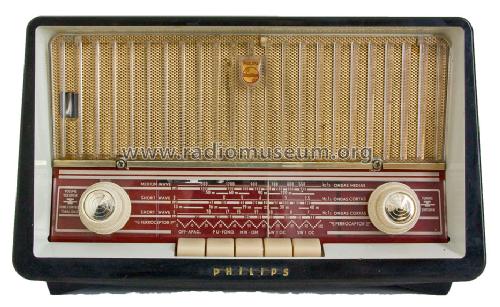

- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 300 x 185 x 180 mm / 11.8 x 7.3 x 7.1 inch
- Notes
-
We don't currently know the difference between the model without suffix (implicitly this equals a suffix of /00) and the suffix /02.
Same chassis as the Philips model B3X85U.
- Author
- Model page created by Fabio Cortes. See "Data change" for further contributors.
