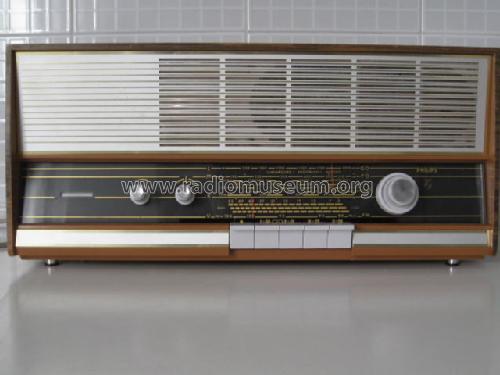

B3X52A; Philips; Eindhoven (ID = 1639483) Radio
Philips; Eindhoven: B3X52A [Radio] ID = 1639483 640x480

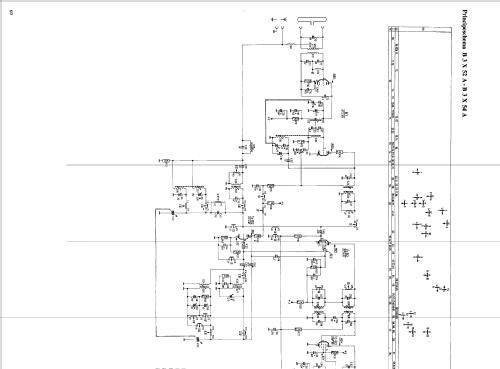

Select picture or schematic to display from thumbnails on the right and click for download.
For model B3X52A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Semiconductors (the count is only for transistors) B250C75 AA119 AA119
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: B3X52A - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 410 x 180 x 170 mm / 16.1 x 7.1 x 6.7 inch
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)

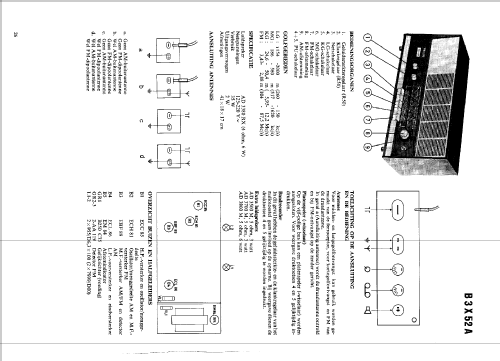

Mentioned in -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
