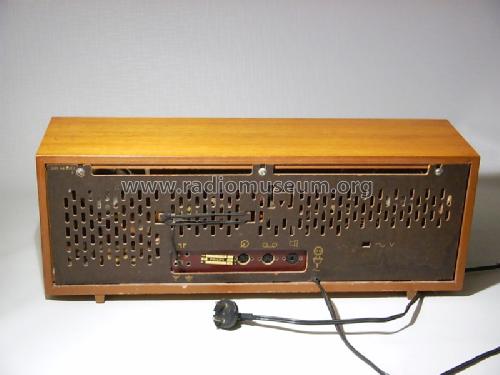

B3X53A /00 /01; Philips; Eindhoven (ID = 197733) Radio B3X53A /00 /01; Philips; Eindhoven (ID = 197736) Radio

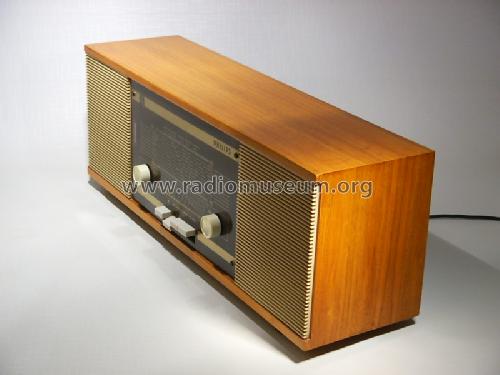

B3X53A /00 /01; Philips; Eindhoven (ID = 197735) Radio B3X53A /00 /01; Philips; Eindhoven (ID = 654942) Radio
B3X53A /00 /01; Philips; Eindhoven (ID = 696626) Radio B3X53A /00 /01; Philips; Eindhoven (ID = 696627) Radio
Use red slider bar for more.

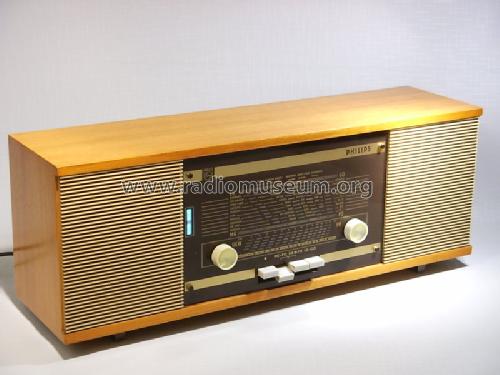

B3X53A /00 /01; Philips; Eindhoven (ID = 197733) Radio
Philips; Eindhoven: B3X53A /00 /01 [Radio] ID = 197733 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3X53A /00 /01, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL86 EM87
Semiconductors (the count is only for transistors) 2: AF124 AF125 OA90 AA119 AA119 BA102 B250C100
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 13 cm = 5.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: B3X53A /00 /01 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 180 x 160 mm / 20.5 x 7.1 x 6.3 inch
Notes

Philips B3X53A, ein hybrid-bestücktes Radio. Der UKW-Tuner ist transistorisiert.


2 cabinet versions: /00 and /01: the properties of the cabinet are not mentioned in the technical service manual.

AM radio with built-in ferroceptor:
  • LW: 150 - 260 kHz.
  • BC: 510 - 1620 kHz.
FM radio with dipole antenna input: 87.5 - 108 MHz.

Amplifier: 1 x 2.5 W in 5 Ohm (loudspeaker AD2500/06).

Dial lamp: 8024D/71 (6.3V / 300mA).
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
