For model B4F75A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECF80 ECH81 EBF89 ECL82 EM81 ECL82 EZ80
Semiconductors (the count is only for transistors) OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10500 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

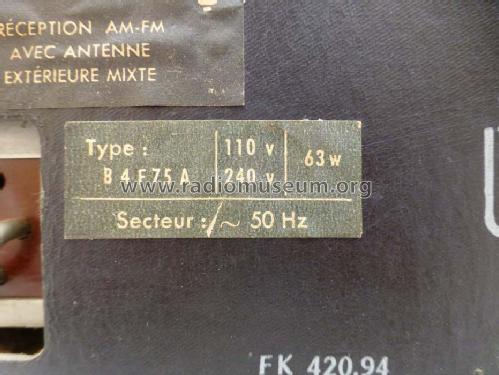

Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: B4F75A - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)

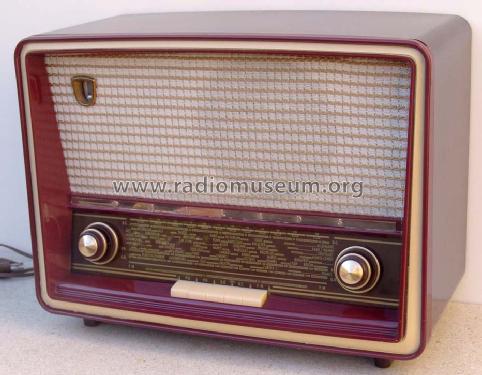

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 426 x 295 x 186 mm / 16.8 x 11.6 x 7.3 inch
Notes

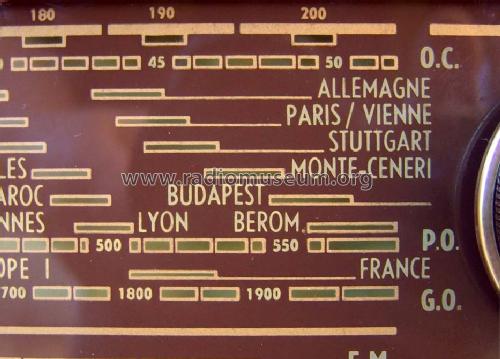

4 gammes d'ondes: PO 185 à 575 m, GO 1150 à 1950 m, OC 19à 51 m, FM 87,5 à 100,5 MHz. Cadre ferroxcube semi-orientable de 23 cm, dipôle FM incorporé. Lampes cadran : 2 x 8045D (6.3 V / 0.32 A).

Possibilité d'installation de l'adaptateur Chalutiers FD 002 79.

Coffret matière plastique moulée bordeaux, façade polystyrène.

Équivalent au Radiola RA428A. Voir aussi modèle B4F57 avec une désignation du type inexacte.


4 wave bands:

  • MW: 185 to 575 m
  • LW: 1150 to 1950 m
  • SW: 19 to 51 m
  • FM: 87.5 to 100.5 MHz

Dial lamps: 2 x 8045D (6,3V/0,32A).

Same chassis as Radiola RA428A. See also model Philips B4F57 with an inaccurate type designation.

Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)

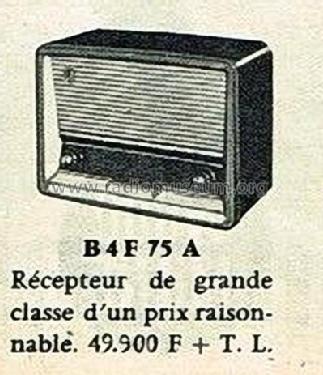

Price in first year of sale 49'900.00 FRF
