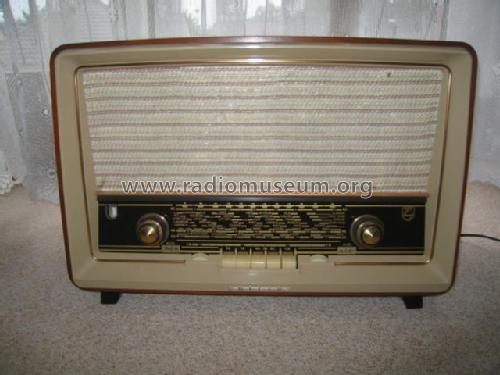

B5F85A; Philips France; (ID = 485442) Radio
Philips France;: B5F85A [Radio] ID = 485442 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model B5F85A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECF80 ECH81 EBF89 ECL82 EM81 ECL82 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: B5F85A - Philips France; Paris
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 220 x 330 mm / 20.9 x 8.7 x 13 inch
Notes Les HP sont à haute impédance 800 ohms.Il n'y à pas de transfo de sortie.Il y à un ampli pour les aigus et un ampli pour les basses.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 60'900.00 FF
Source of data -- Collector info (Sammler)

Model page created by Eddy Rischmann. See "Data change" for further contributors.
