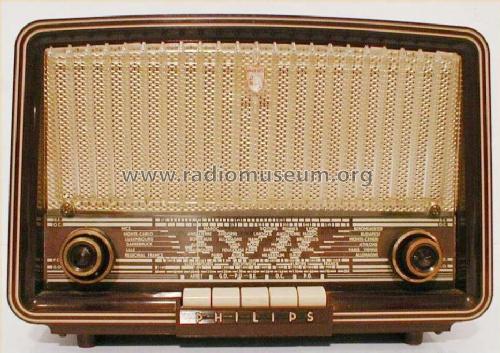

B3F70A; Philips France; (ID = 99567) Radio
Philips France;: B3F70A [Radio] ID = 99567 881x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3F70A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B3F70A - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 240 x 180 mm / 13.4 x 9.4 x 7.1 inch
Source of data Les Radio PHILIPS de collection

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
