• Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 6984
    • Brand: Deutsche Philips-Ges.

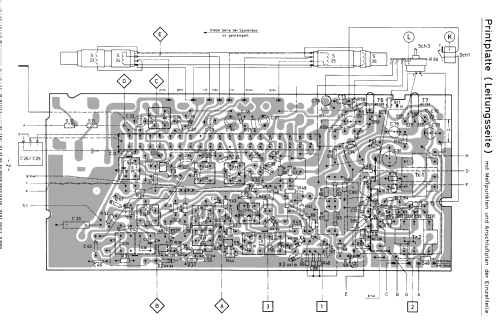

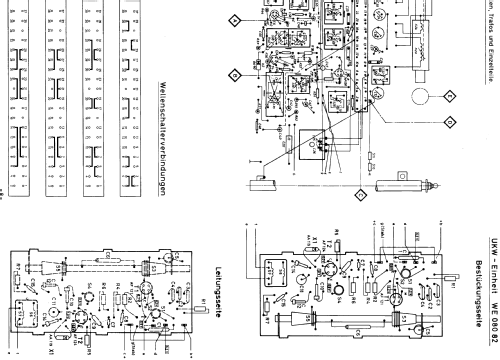

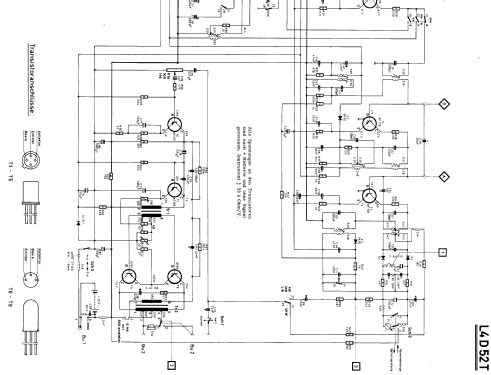

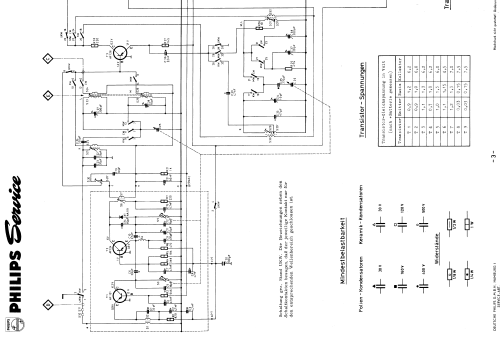

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 5 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

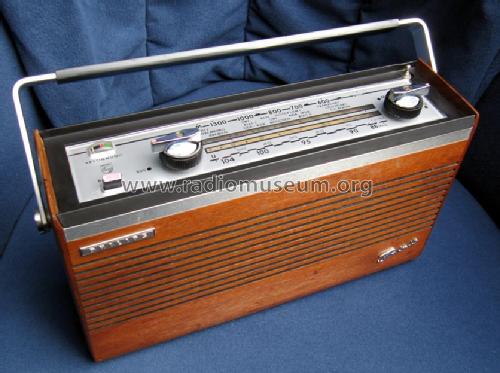

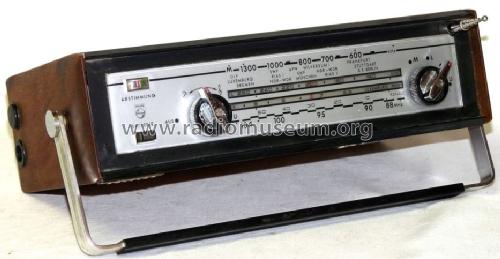

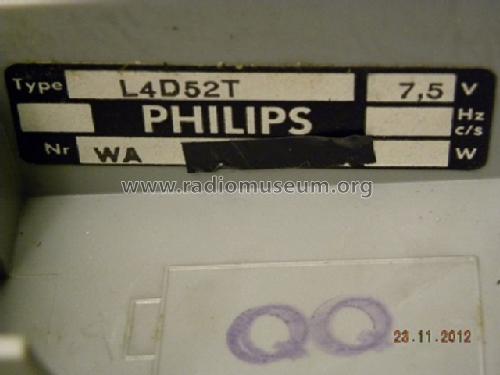

  • Model: Babette L4D52T - Philips Radios - Deutschland
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 160 x 80 mm / 11 x 6.3 x 3.1 inch
  • Notes
  • Netzbetrieb mit zusätzlichem Netzteil möglich.
  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
