Bassreflexbox WA187LZ

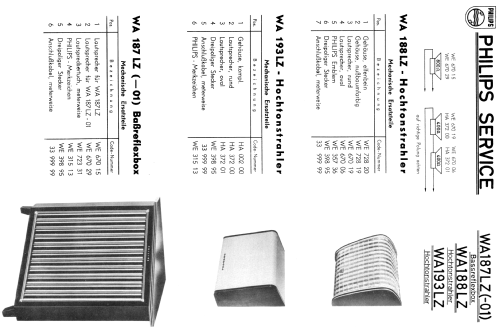

Bassreflexbox WA187LZ; Philips Radios - (ID = 2605126) Speaker-P
Bassreflexbox WA187LZ; Philips Radios - (ID = 189866) Speaker-P Bassreflexbox WA187LZ; Philips Radios - (ID = 726489) Speaker-P
Bassreflexbox WA187LZ; Philips Radios - (ID = 726490) Speaker-P Bassreflexbox WA187LZ; Philips Radios - (ID = 1644260) Speaker-P
Use red slider bar for more.
Bassreflexbox WA187LZ; Philips Radios - (ID = 189866) Speaker-P
Philips Radios -: Bassreflexbox WA187LZ [Speaker-P] ID = 189866 567x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bassreflexbox WA187LZ, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1955/1956 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19.5 cm = 7.7 inch
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Bassreflexbox WA187LZ - Philips Radios - Deutschland
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 720 x 770 x 420 mm / 28.3 x 30.3 x 16.5 inch
Notes 800 Ohm, Eckschrankausführung
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Price in first year of sale 258.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in -- Original-techn. papers.

Model page created by Lars Brötje. See "Data change" for further contributors.
