• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 105572

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• AW59-90

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

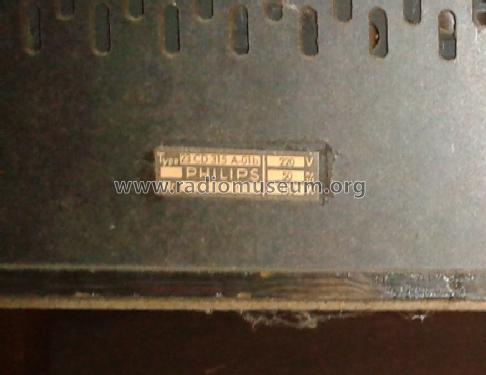

• Model: Bellini Vollautomatic 23CD315A /01b - Philips Radios - Deutschland

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 800 x 870 x 420 mm / 31.5 x 34.3 x 16.5 inch

• Notes
• Technische Daten wie Bellini 23TD315A, jedoch Standgerät mit verschließbarer Rolltür.

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Price in first year of sale
• 1,138.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
