Berlin Automatik EL3558
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1966
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 265441
-
- Brand: Deutsche Philips-Ges.

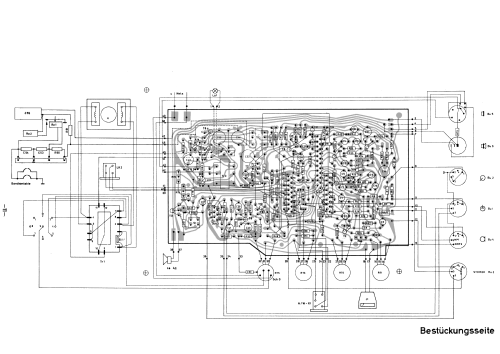

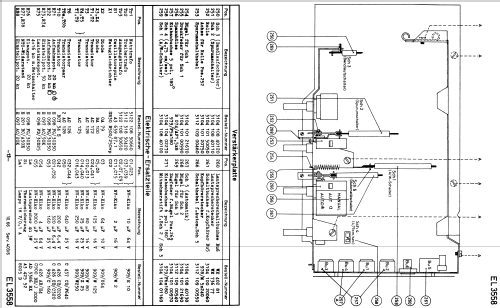

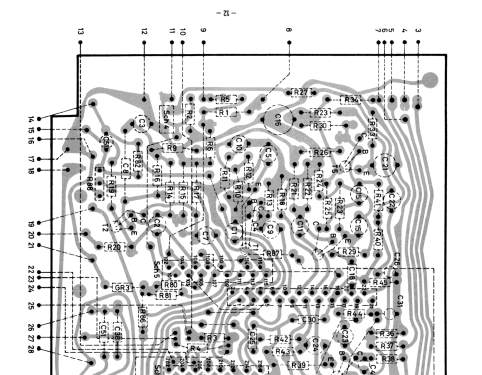

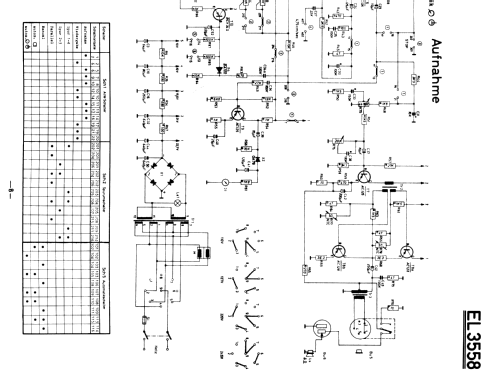

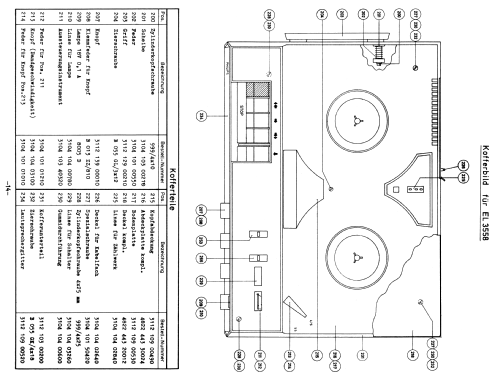

Aus dem Service-Manual

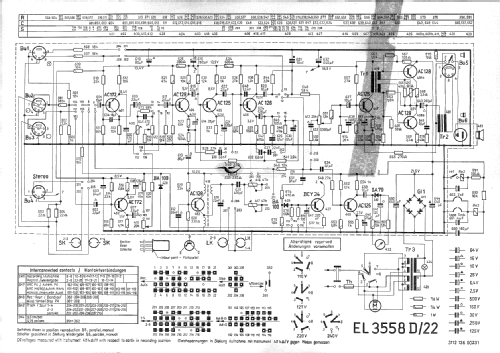

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127: 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Berlin Automatik EL3558 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 405 x 300 x 150 mm / 15.9 x 11.8 x 5.9 inch
- Notes
-
Mono-Tonbandgerät
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
