B4F60A - BF460A

B4F60A - BF460A; Philips France; (ID = 1195600) Radio

B4F60A - BF460A; Philips France; (ID = 1195601) Radio

B4F60A - BF460A; Philips France; (ID = 1195602) Radio

B4F60A - BF460A; Philips France; (ID = 1195603) Radio

B4F60A - BF460A; Philips France; (ID = 1195604) Radio

B4F60A - BF460A; Philips France; (ID = 1195605) Radio

B4F60A - BF460A; Philips France; (ID = 1195606) Radio

B4F60A - BF460A; Philips France; (ID = 1195607) Radio

B4F60A - BF460A; Philips France; (ID = 1195608) Radio

B4F60A - BF460A; Philips France; (ID = 1195609) Radio
B4F60A - BF460A; Philips France; (ID = 1021738) Radio B4F60A - BF460A; Philips France; (ID = 1021739) Radio
B4F60A - BF460A; Philips France; (ID = 1021740) Radio B4F60A - BF460A; Philips France; (ID = 1021741) Radio
B4F60A - BF460A; Philips France; (ID = 1021743) Radio B4F60A - BF460A; Philips France; (ID = 1021744) Radio
B4F60A - BF460A; Philips France; (ID = 1021745) Radio B4F60A - BF460A; Philips France; (ID = 1021746) Radio
B4F60A - BF460A; Philips France; (ID = 1376124) Radio B4F60A - BF460A; Philips France; (ID = 1376125) Radio
Use red slider bar for more.
B4F60A - BF460A; Philips France; (ID = 1021738) Radio
Philips France;: B4F60A - BF460A [Radio] ID = 1021738 933x729
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4F60A - BF460A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956–1958 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 ECL82 EZ80 EM81
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: B4F60A - BF460A - Philips France; Paris
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 477 x 327 x 185 mm / 18.8 x 12.9 x 7.3 inch
Notes

4 gammes d'ondes : BE (bande étalée) de 47 à 50.5 m, OC de 18 à 51 m, PO de 185 à 572 m, et GO de 1100 à 1950 m. Cadre Ferroxcube orientable et blindé, plaque antenne OC. Clavier éclairé 5 touches.

Cadran prévu pour adaptateur chalutier FD 000 83 (80 à 200 m).
Coffret en bakélite - le documentation du modèle mentionne noyer verni, ce qui est eronnée.

Équivalent au Radiola RA467A.

Le type BF460A est seulement mentionné dans les publicités; réellement le modèle est désigné B4F60A.

Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 29'900.00 FRF
Collectors' prices

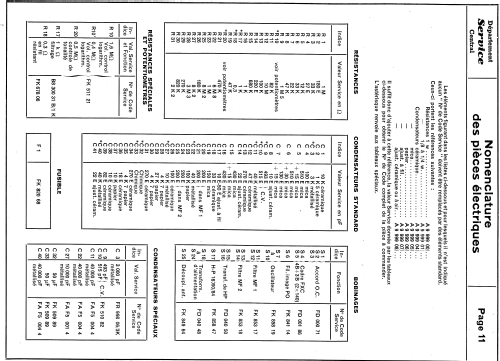

Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert (Gamme 1958)

Model page created by Christian Loiseau. See "Data change" for further contributors.
