• Year
  • 1970–1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28213
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

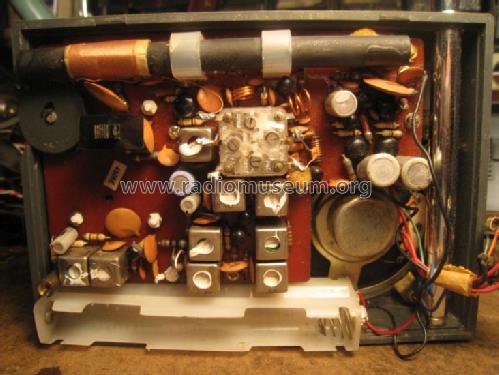

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Blues 90RL194 - Philips Radios - Deutschland
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 157 x 109 x 46 mm / 6.2 x 4.3 x 1.8 inch
  • Notes

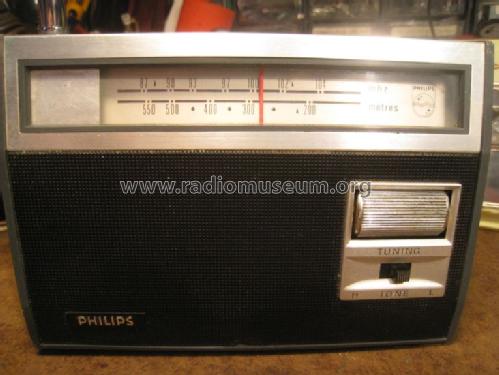

  • 3 Dioden . Bereichs-Umschalter auf der Rückseite. Klang-Schalter vorn unterhalb des Absimmknopfes. Auf der linken Seite sind Kopfhöreranschluss und Anschluss für externe Stromversorgung bis 6 V.
  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • External source of data
  • Erb
  • Mentioned in
  • -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
