For model "Bratpfanne" 2003, Philips Radios - Deutschland:
Philips Bratpfanne D=400mm

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1928/1929 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: "Bratpfanne" 2003 - Philips Radios - Deutschland
Material Bakelite case
Dimensions (WHD) 400 x 430 x 110 mm / 15.7 x 16.9 x 4.3 inch
Notes LS mit Umschalter zur Variierung der Klangfarbe
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Collectors' prices
Source of data Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Philips Radios - Deutschland
Here you find 2488 models, 2200 with images and 1502 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: "Bratpfanne" 2003
Threads: 1 | Posts: 1
Hits: 1711     Replies: 0
philips: 2003; 'Bratpfanne' pics
John Hupse
12.Jan.07
  1

Dear administrator,

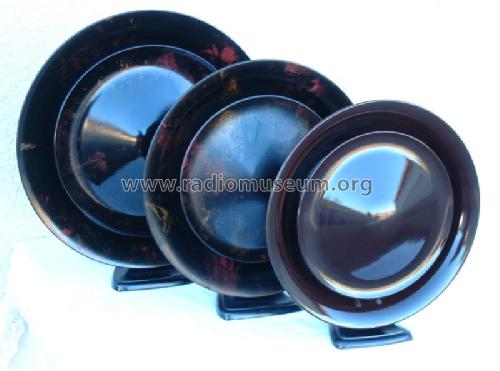

The  Philips No. 2003 loudspeaker is a 40 cm speaker, introduced in 1926. Six pictures here show another Philips speaker model of a different size and shape. The 45 cm models are most likely Philips No. 2006 or No. 2007 speakers.

#75155, this is a 35 cm speaker
#75157, this is a 45 cm speaker
#172845, this is a 35 cm speaker
#172846, this is a 35 cm speaker
#236064, this is a 45 cm speaker
#236065, this is a 45 cm speaker
