Car Radio 248/B

Car Radio 248/B; Philips; Budapest (ID = 1435118) Car Radio Car Radio 248/B; Philips; Budapest (ID = 1435119) Car Radio
Car Radio 248/B; Philips; Budapest (ID = 1931375) Car Radio
Use red slider bar for more.
Car Radio 248/B; Philips; Budapest (ID = 1435118) Car Radio
Philips; Budapest: Car Radio 248/B [Car Radio] ID = 1435118 631x562
Select picture or schematic to display from thumbnails on the right and click for download.
For model Car Radio 248/B, Philips; Budapest:
Thanks for Mr.Tóth Ferenc, Hungary, Pomáz and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1937 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6:
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Car Radio 248/B - Philips; Budapest
Material Metal case
Shape Chassis only or for «building in»
Price in first year of sale 689.00 Pengő

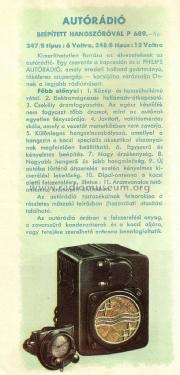

Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Philips; Budapest
Here you find 213 models, 209 with images and 115 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
