Cassetta Mark 660 22AC660 /82

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083817) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083818) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083819) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083822) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083823) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083825) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083826) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083827) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083828) Car Radio

Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1083829) Car Radio
Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1995099) Car Radio Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1167473) Car Radio
Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 648743) Car Radio Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 648746) Car Radio
Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 648742) Car Radio Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 648744) Car Radio
Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 648745) Car Radio Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1167469) Car Radio
Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1167470) Car Radio Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1167471) Car Radio
Use red slider bar for more.
Cassetta Mark 660 22AC660 /82; Philips Radios - (ID = 1995099) Car Radio
Philips Radios -: Cassetta Mark 660 22AC660 /82 [Car Radio] ID = 1995099 990x378
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassetta Mark 660 22AC660 /82, Philips Radios - Deutschland:
Bild aus Servicedoku.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1976 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 27:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Cassetta Mark 660 22AC660 /82 - Philips Radios - Deutschland
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 43 x 160 mm / 7.1 x 1.7 x 6.3 inch
Notes

Car-Radio Cassetteplayer 22AC660 /82

FM 87,5 - 104 MHz, AM 520 - 1605 kHz
2 x 5 Watt Output in 4 ohm, Analog-Skala

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)

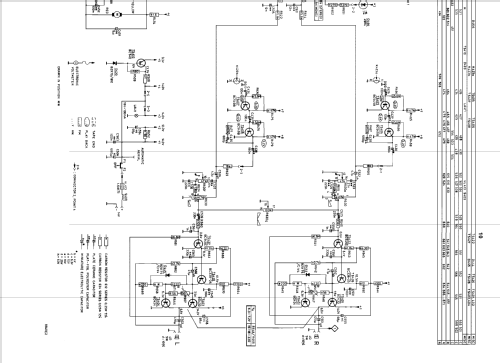

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
