CD Soundmachine AZ102C /37, AZ102S /37

Philips 飞利浦; China

Data
Forum
Pictures
Collections

  • Year
  • 2008
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 361858

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Line / Batteries (any type) / 60 Hz, 120 V / C: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 3 inch = 7.6 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CD Soundmachine AZ102C /37, AZ102S /37 - Philips 飞利浦; China
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 290 x 143 x 240 mm / 11.4 x 5.6 x 9.4 inch
  • Notes

  • Playback media: CD, CD-R, CD-RW.

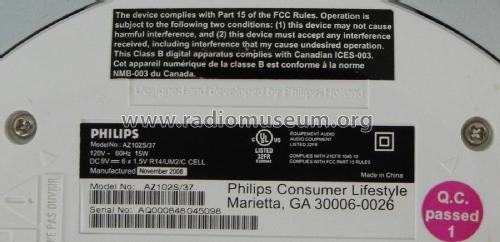

    Colors available (see model label):

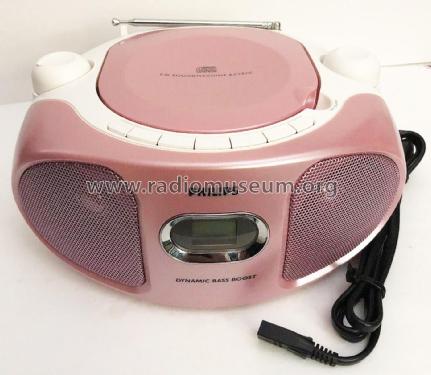

    AZ102C = Pink
    AZ102S = Silver

    UL (Underwriters Laboratories) certification for United States/Canada
    Complies with Part 15 FCC rules and Canadian ICES-003

    See also:

    AZ102B /05 (Black: 50Hz, 230-240V for United Kingdom/Ireland)
    AZ102C /05 (Pink: 50Hz, 230-240V for United Kingdom/Ireland)
    AZ102S /05 (Silver: 50Hz, 230-240V for United Kingdom/Ireland)
    AZ102B /79 (Black: 50Hz, 230-240V for Australia/New Zealand)
    AZ102C /79 (Pink: 50Hz, 230-240V for Australia/New Zealand)
    AZ102S /79 (Silver: 50Hz, 230-240V for Australia/New Zealand)

  • Net weight (2.2 lb = 1 kg)
  • 1.620 kg / 3 lb 9.1 oz (3.568 lb)
  • Author
  • Model page created by Serioja Tatu. See "Data change" for further contributors.
