Clock Radio 13RS273 (RS273)

Clock Radio 13RS273 ; Philips Electrical, (ID = 2300927) Radio

Clock Radio 13RS273 ; Philips Electrical, (ID = 2300928) Radio

Clock Radio 13RS273 ; Philips Electrical, (ID = 2300929) Radio
Clock Radio 13RS273 ; Philips Electrical, (ID = 2314601) Radio Clock Radio 13RS273 ; Philips Electrical, (ID = 2314600) Radio

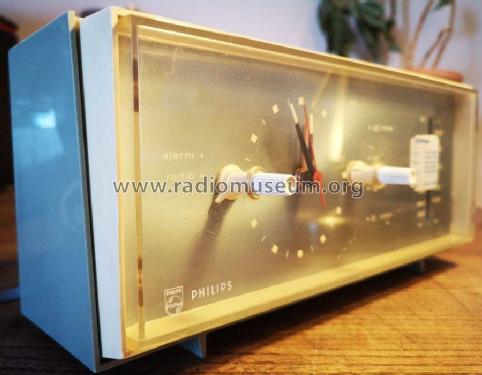

Clock Radio 13RS273 ; Philips Electrical, (ID = 2314602) Radio Clock Radio 13RS273 ; Philips Electrical, (ID = 2314603) Radio
Clock Radio 13RS273 ; Philips Electrical, (ID = 2314604) Radio
Use red slider bar for more.
Clock Radio 13RS273 ; Philips Electrical, (ID = 2314601) Radio
Philips Electrical,: Clock Radio 13RS273 [Radio] ID = 2314601 900x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clock Radio 13RS273 (RS273), Philips Electrical, Lamps, Industrial - Miniwatt; London:
Ebay UK auction item 263813127091 seller brightonrock2001

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF117 AF117 AF117 OC81 or. AC128 OC81 or. AC128 OC81 or. AC128
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Clock Radio 13RS273 - Philips Electrical, Lamps,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 9.875 x 4.563 x 4.25 inch / 251 x 116 x 108 mm
Notes

Compact mains operated clock and transistorised MW/LW radio, featuring a radio/buzzer alarm. Similar to Stella ST4503. Metal rectifier.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Literature/Schematics (1) ERT Service Chart 1740 dated March 26 1970

Model page created by Howard Craven. See "Data change" for further contributors.
