Clock-Radio 7180

Philips Radios - Deutschland

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Philips Radios - Deutschland

Year
1980 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
108648

- Brand: Deutsche Philips-Ges.

Schematics

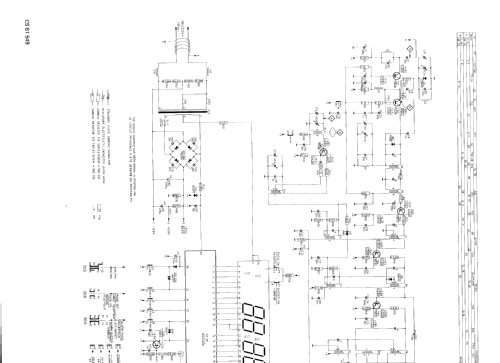

Clock-Radio 7180; Philips Radios - (ID = 265900) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 265901) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 265902) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 265903) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 265904) Radio — Philips Radios - Clock-Radio 7180 (3)

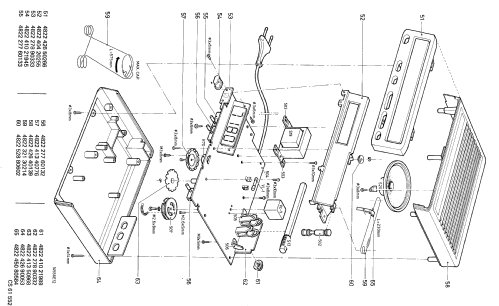

Clock-Radio 7180; Philips Radios - (ID = 1140187) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140188) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140189) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140190) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140191) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140192) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140193) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 1140194) Radio — Philips Radios - Clock-Radio 7180 (3)

Clock-Radio 7180; Philips Radios - (ID = 961919) Radio — Philips Radios - Clock-Radio 7180 (2)

Clock-Radio 7180; Philips Radios - (ID = 702696) Radio — Philips Radios - Clock-Radio 7180 (2)
Q: Philips Service

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
11

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 468 kHz

Tuned circuits
8 AM circuit(s) 12 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 110/220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

from Radiomuseum.org
Model: Clock-Radio 7180 - Philips Radios - Deutschland

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Notes
ICs: 2.

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Josef Pilz. See "Data change" for further contributors.

Other Models
Here you find 2542 models, 2254 with images and 1563 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Radios - Deutschland
