Clock Radio D3110/00

Philips Hong Kong

Data

Forum

Pictures

Collections

Country
Hong Kong

Manufacturer / Brand
Philips Hong Kong

Year
1982 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
165823

Schematics

Clock Radio D3110/00; Philips Hong Kong (ID = 913449) Radio — Philips Hong Kong Clock Radio D3110/00 (3)

Clock Radio D3110/00; Philips Hong Kong (ID = 697063) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

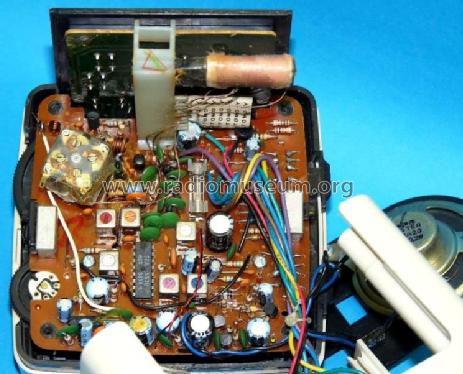

Clock Radio D3110/00; Philips Hong Kong (ID = 697057) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 697059) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

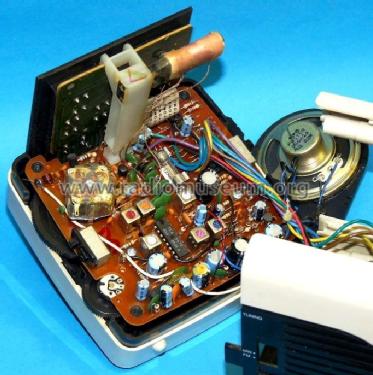

Clock Radio D3110/00; Philips Hong Kong (ID = 697058) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

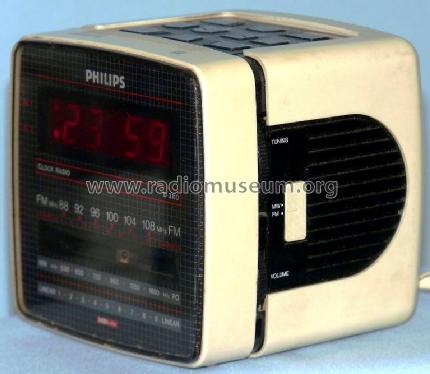

Clock Radio D3110/00; Philips Hong Kong (ID = 697060) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

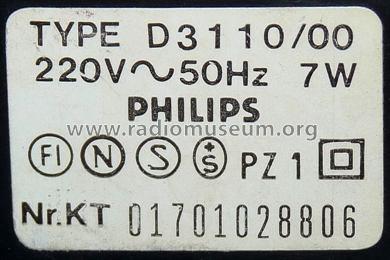

Clock Radio D3110/00; Philips Hong Kong (ID = 697061) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

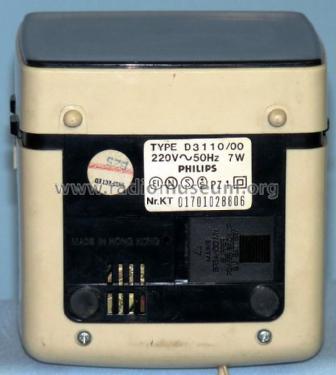

Clock Radio D3110/00; Philips Hong Kong (ID = 697062) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3013194) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3013195) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3013196) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3013197) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

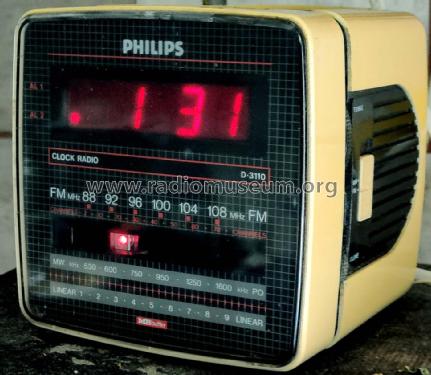

Clock Radio D3110/00; Philips Hong Kong (ID = 3017836) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017837) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017838) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017839) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017840) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017841) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017842) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Clock Radio D3110/00; Philips Hong Kong (ID = 3017843) Radio — Philips Hong Kong Clock Radio D3110/00 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
5

Semiconductors
1502B 1502C TEA5570 TA7313AP 1602E 1402E 1402E TMS3459 TLR4262 1N60 BA317 1K60 ZPD10 ZPD4,7 TLR124

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Details
Radio with other functions

Power type and voltage
Alternating Current supply (AC) / 220 / 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

Power out
0.15 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Clock Radio D3110/00 - Philips Hong Kong

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
117 x 117 x 117 mm / 4.6 x 4.6 x 4.6 inch

Notes
AM/FM-Clock-Radio mit 2 Alarmstufen, aut. Display-Dimmer, LED-Skalenzeiger, FM-Wurfantenne. AM Ferritantenne 5,5 cm, 1 LIN-IC TEA5570 (AM/FM-Radio-Ucc=2,7...12 Volt), 1 LIN-IC TA7313AP (NF-E, = identisch mit LA4140), 9-Volt Blockbatterie zur Erhaltung der Uhrzeit bei Stromausfall.

Jeder Diodentyp ist einmal gelistet.

Net weight (2.2 lb = 1 kg)
0.780 kg / 1 lb 11.5 oz (1.718 lb)

Author
Model page created by Museum Roggenhofer. See "Data change" for further contributors.
