Colette Automatic de Luxe P4D54T Kunststoff

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159100) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159101) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159102) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159103) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159104) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159111) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 159112) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 126753) Radio

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 126754) Radio
Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 716634) Radio Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 475450) Radio

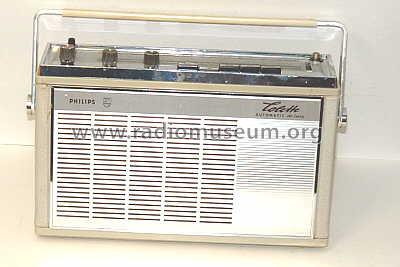

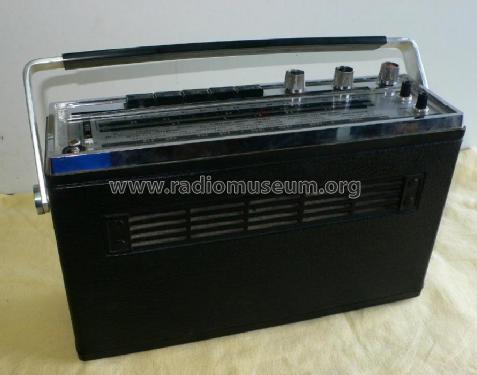

Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 14180) Radio Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 475452) Radio
Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 617055) Radio Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 577180) Radio
Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 475451) Radio Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 430416) Radio
Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 617056) Radio Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 617057) Radio
Use red slider bar for more.
Colette Automatic de Luxe P4D54T; Philips Radios - (ID = 716634) Radio
Philips Radios -: Colette Automatic de Luxe P4D54T [Radio] ID = 716634 832x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colette Automatic de Luxe P4D54T Kunststoff, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF115 BF115 AF121 AF121 AF121 AC125 AC126 AC128 AC128 BA102 AA119 AA119 AA119 AA119 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Colette Automatic de Luxe P4D54T [Kunststoff] - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 195 x 90 mm / 12.4 x 7.7 x 3.5 inch
Notes

Netzbetrieb mit zusätzlichem Netzteil möglich. Betrieb im Auto mit Autohalterung NP1038 oder 12ER8100.

Siehe auch Ausführung in Holz.

Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Collectors' prices
Source of data Handbuch VDRG 1966/1967
Mentioned in Handbuch VDRG 1967/1968

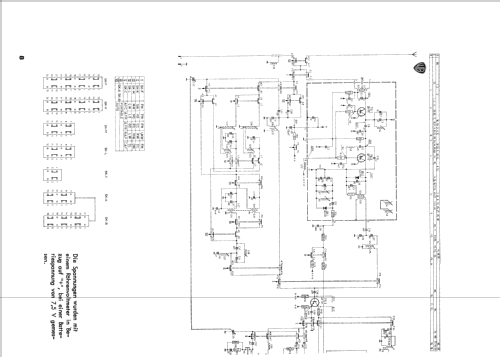

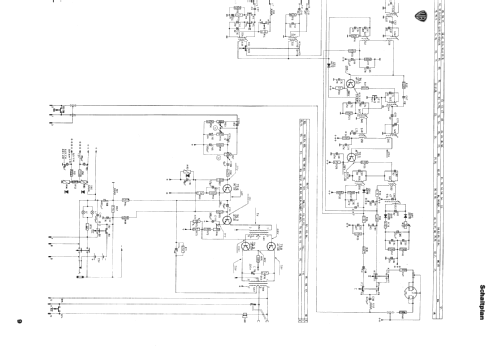

Literature/Schematics (1) -- Original-techn. papers.
